GROUP 01
Mud Chemicals
88product lines
Drilling fluids, LCM, cementing, SOBM, well treatment and production chemistry — each line with full TDS and SDS in English, Spanish and Portuguese.
Browse Mud Chemicals →Full Portfolio
Product Portfolio
Three product groups covering the drilling fluid programme end to end — the chemistry that builds the mud, the instruments that measure it, and the screens that clean it.88 chemical lines, 14 lab instruments, 20 screen configurations.
GROUP 02
Mud Lab Equipment
14instruments
API-standard instruments for drilling fluid testing and quality control, from mud balances and Marsh funnels to HTHP filter presses and roller ovens.
Browse Mud Lab Equipment →GROUP 03
Shale Shaker Screens
20panel configurations
API RP 13C replacement panels for 14 shaker families, in stainless 304, 316 and 316L mesh.
Browse Shale Shaker Screens →Group 01 · 88 Products
Mud Chemicals
PZT-EMU-P / PZT-EMU-S
SOBM Emulsifiers
Primary & Secondary · SOBM
SOBM Emulsifiers
Primary (PZT-EMU-P) and secondary (PZT-EMU-S) emulsifiers for SOBM/OBM systems. Achieves Electrical Stability (ES) >800V at HPHT conditions exceeding 300°F (149°C). Flash point >93°C. SG 0.90–0.95 g/mL. Field data shows ≤0.5 ppg reduction in required mud weight vs. conventional emulsifier systems in equivalent density windows.
View Details →
PZT-MICA-F / PZT-MICA-M / PZT-MICA-C
Mica Flakes
Lost Circulation Material · LCM
Mica Flakes
Naturally occurring, platy silicate mineral, ground and sized as a lost-circulation material (LCM). Flat, plate-like particles bridge across pore throats and micro-fractures in the formation face, physically blocking whole-mud loss into fractured, vugular, or highly permeable zones.
View Details →
PZT-WET-1
Wetting Agent
SOBM Additive · Fluid Engineering
Wetting Agent
Oil-wetting agent for solids and drill cuttings in SOBM/OBM systems. Prevents water-wet solids from destabilizing mud rheology. High salinity tolerance - effective up to 250,000 ppm TDS. Stable up to 90°C (194°F).
View Details →
PZT-EMU-P / PZT-EMU-S
SOBM Emulsifiers
Primary & Secondary · SOBM
SOBM Emulsifiers
Primary (PZT-EMU-P) and secondary (PZT-EMU-S) emulsifiers for SOBM/OBM systems. Achieves Electrical Stability (ES) >800V at HPHT conditions exceeding 300°F (149°C). Flash point >93°C. SG 0.90–0.95 g/mL. Field data shows ≤0.5 ppg reduction in required mud weight vs. conventional emulsifier systems in equivalent density windows.
View Details →
PZT-FOAM-S
Foam Stick
Foaming Agent · Well Treatment
Foam Stick
Solid stick foaming agent for gas well deliquification. Reduces brine column surface tension from 70 mN/m to 25–35 mN/m, generating low-density foam (0.1–0.3 g/cm³) lifted by natural reservoir pressure. Typical production uplift: 15–40% gas flow restoration within 48 hours of first treatment.
View Details →
PZT-FOAM-S
Foam Stick
Foaming Agent · Well Treatment
Foam Stick
Solid stick foaming agent for gas well deliquification. Reduces brine column surface tension from 70 mN/m to 25–35 mN/m, generating low-density foam (0.1–0.3 g/cm³) lifted by natural reservoir pressure. Typical production uplift: 15–40% gas flow restoration within 48 hours of first treatment.
View Details →
Group 02 · 14 Instruments
Mud Lab Equipment
Density · Mud Weight

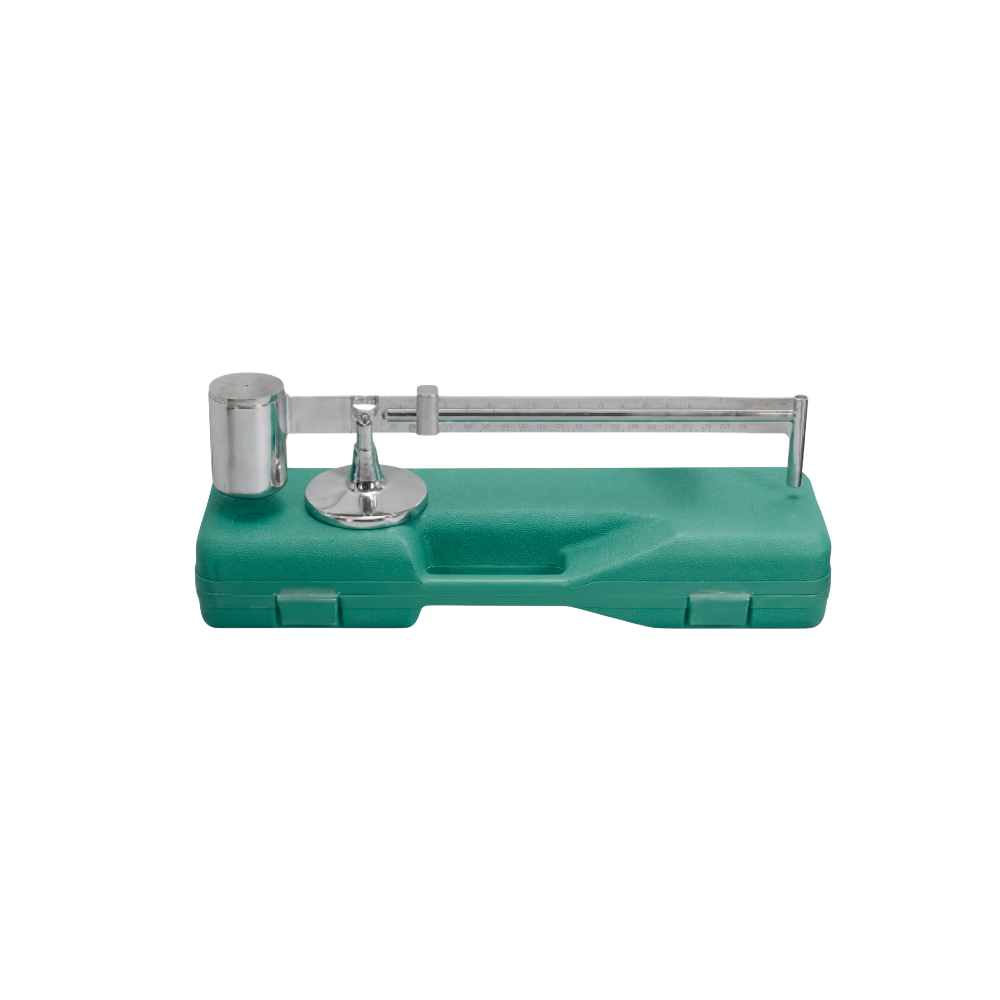

Mud Balance
Beam balance for drilling fluid density, reading directly in ppg, specific gravity, and kg/m³.
View Details →
Rheology · Multi-Speed

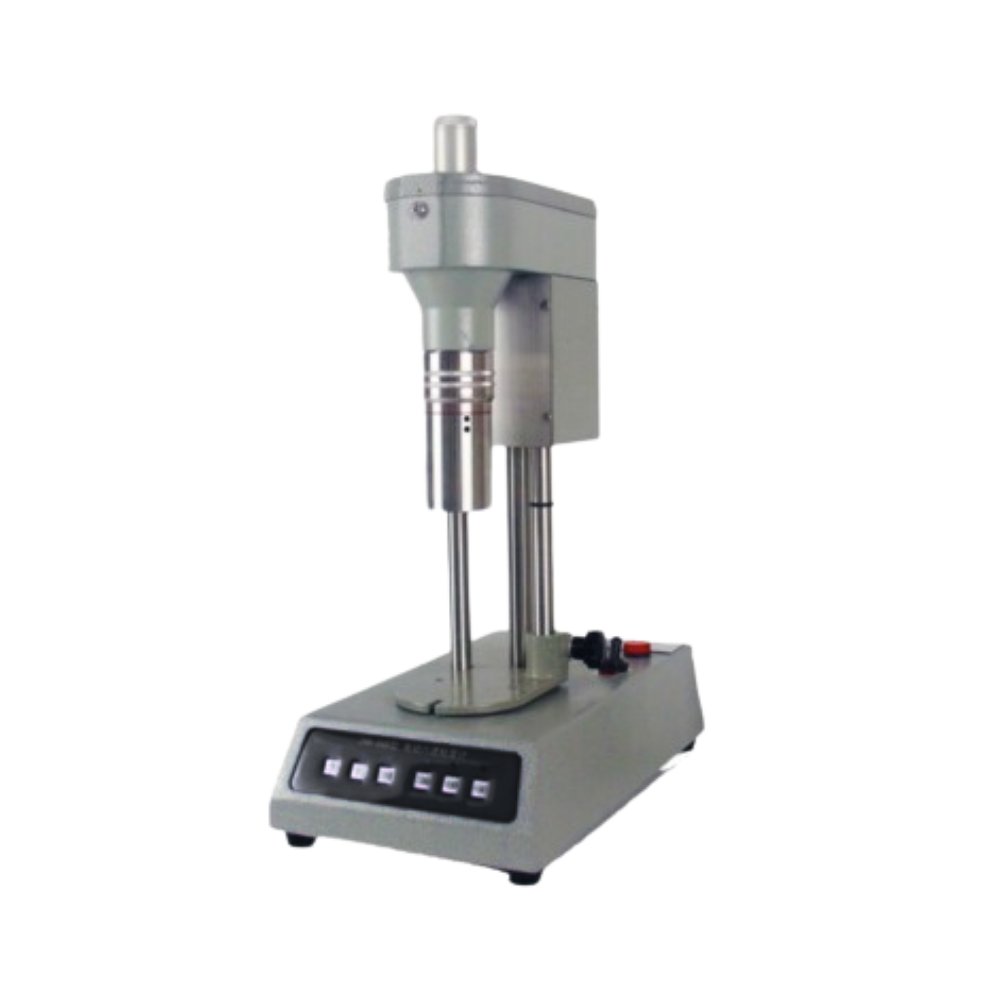

6-Speed Viscometer
Rotational viscometer reading at six standard speeds for full rheological characterisation.
View Details →
Fluid Loss · HTHP

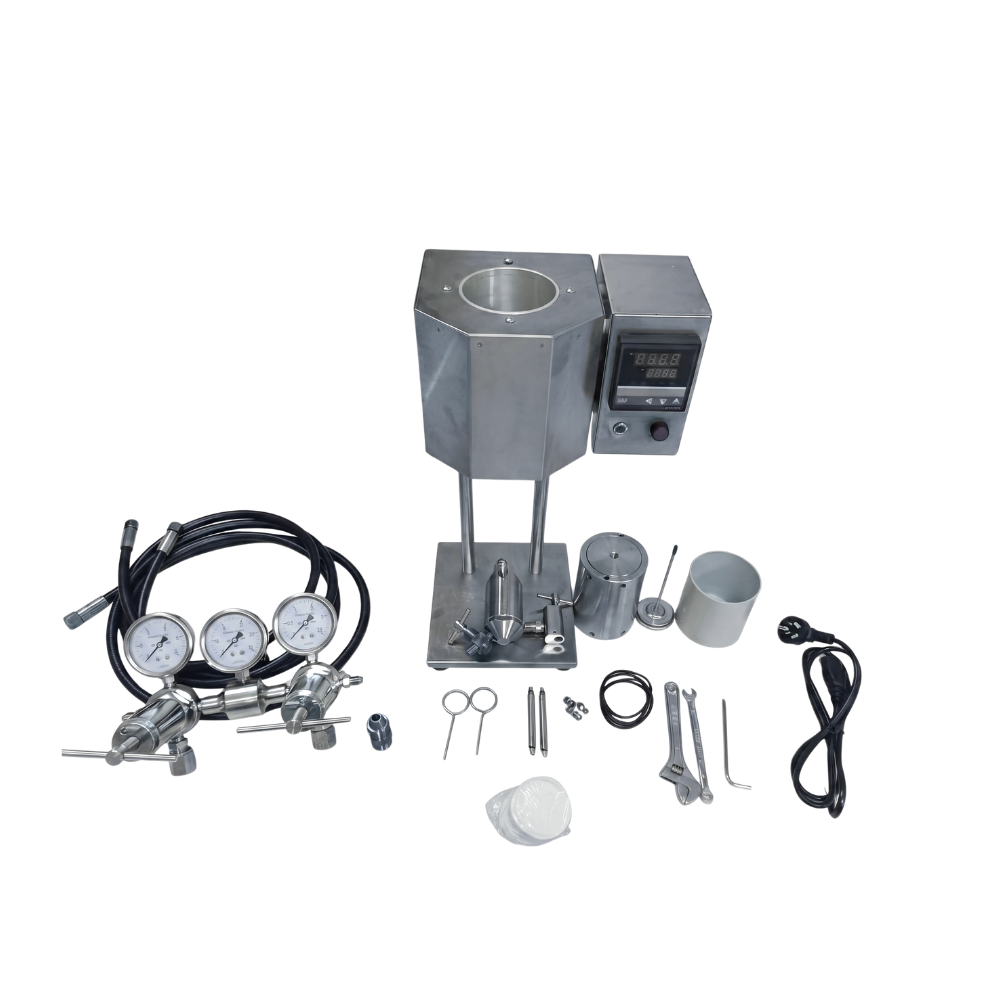

HTHP Filter Press
175 mL high-temperature, high-pressure filter press for fluid loss and mud cake testing at downhole conditions.
View Details →
Thermal Stability · Aging
Roller Oven
SS 316 rolling oven holding eight 500 mL aging cells at up to 260 °C for dynamic thermal aging.
View Details →
Solids · Oil / Water Ratio

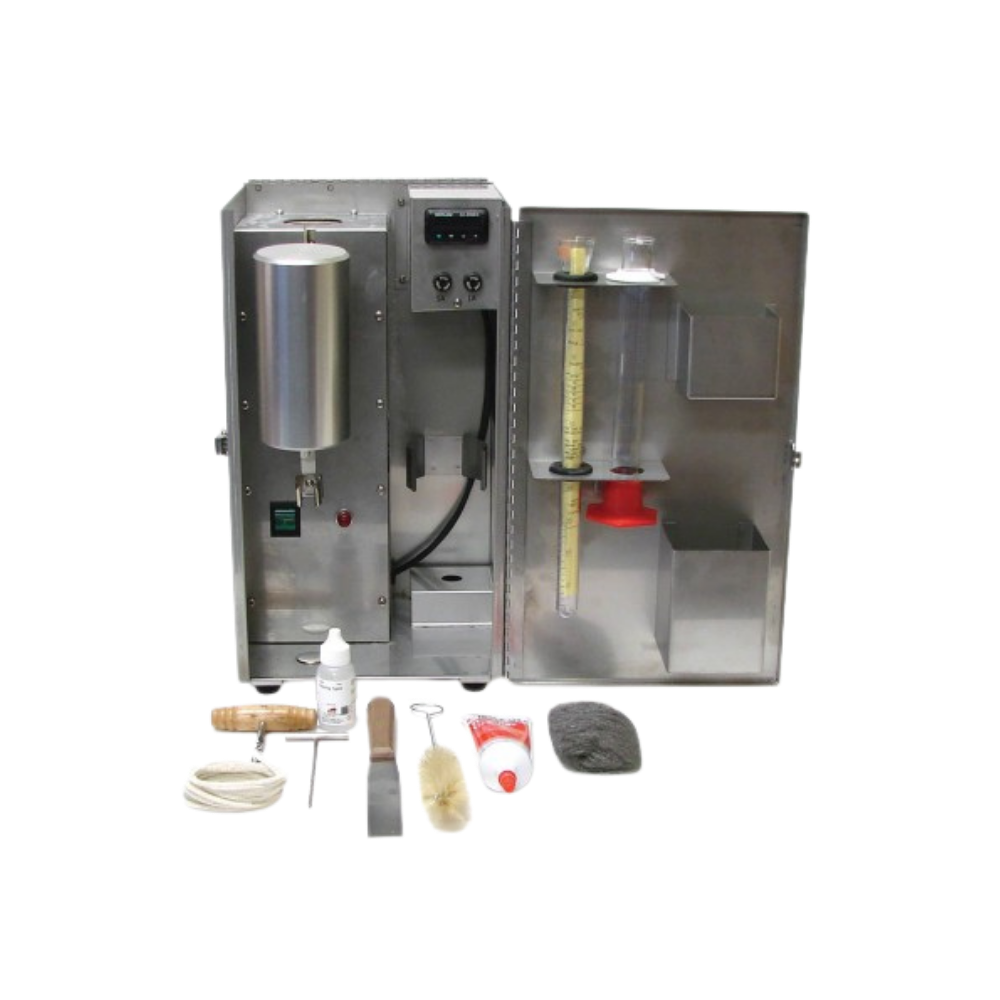

Retort Kit
Distillation kit resolving a mud sample into its oil, water and solids fractions.
View Details →
Fluid Loss · API Conditions

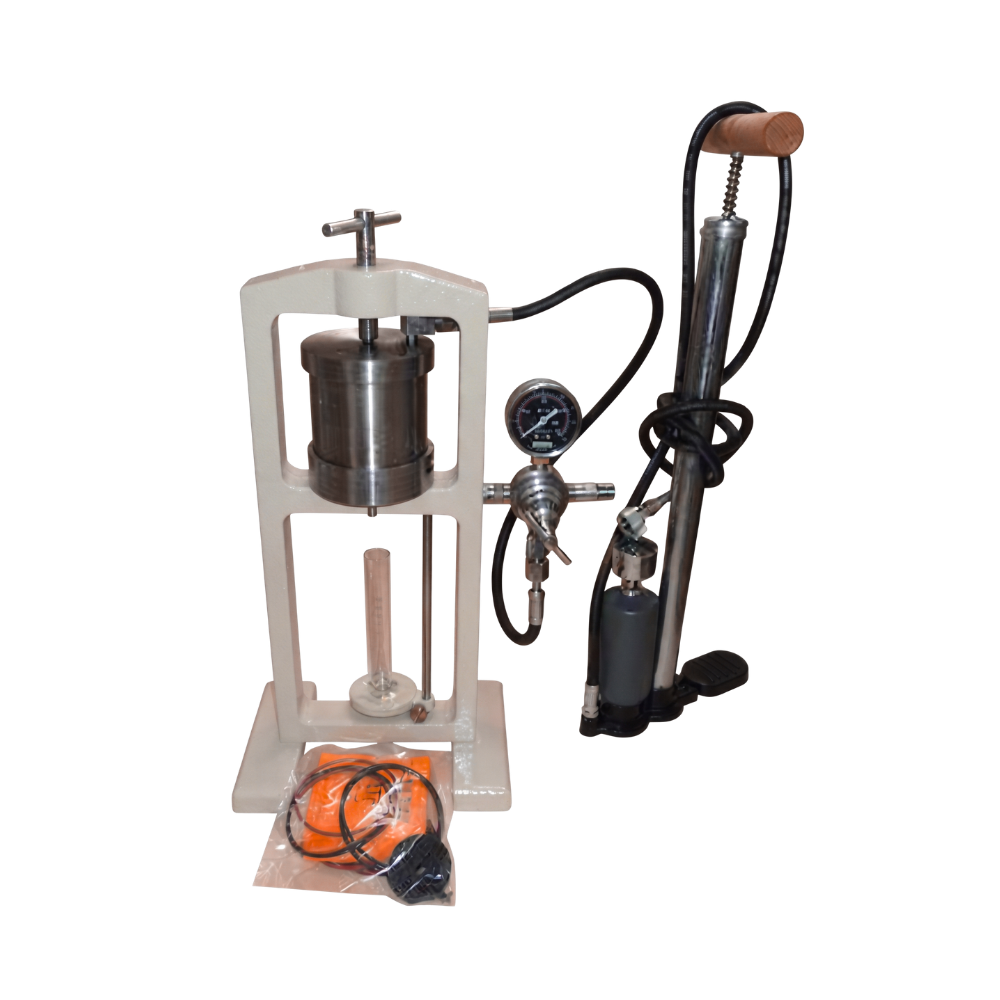

API Filter Press
Standard low-pressure filter press for API static fluid-loss and filter-cake evaluation.
View Details →
Group 03 · 20 Configurations
Shale Shaker Screens
Replacement panels built to API RP 13C for 14 shaker families, in stainless 304, 316 and 316L. Full variant and compatibility tables on the group page.
