Shale Shaker Screens

Replacement screens built to API RP 13C, in 20 panel configurations covering14 shaker families. Mesh is stainless steel 304 / 316 / 316l throughout, in perforated wear plate (PWP), pyramid (PMD), hook-strip and pretension constructions.

FLC 2000 / 48 x 30 — PWP

→

FLC 2000 / 48 x 30 — PMD

→

FLC 500 Series — PWP

→

FLC 500 Series — PMD

→

DP 600 Series — PMD

→

Hyperpool — PWP

→

Hyperpool — PMD

→

Hyperpool — Hook Strip PWP

→

VSM 300 — Scalping (Top Deck)

→

VSM 300 — Primary (Lower Deck)

→

VSM 300 — Secondary (Drying Deck)

→

4' x 5' / B40 — Hook Strip Soft Screen

→

BLT-50 / LCM-2D — Flat Screen

→

Mongoose / Meerkat PT

→

MD-2 / MD-3

→

Mamut — Composite Frame

→

ALS-2 — Hook Strip Flat Screen

→

KTL 48 Series — Steel Frame

→

28 Series

→

FSI 5000 Series

→

FLC 2000 / 48 x 30 — PWP

FLC 2000 / 48 x 30 — PMD

FLC 500 Series — PWP

FLC 500 Series — PMD

DP 600 Series — PMD

Hyperpool — PWP

Hyperpool — PMD

Hyperpool — Hook Strip PWP

VSM 300 — Scalping (Top Deck)

VSM 300 — Primary (Lower Deck)

VSM 300 — Secondary (Drying Deck)

4' x 5' / B40 — Hook Strip Soft Screen

BLT-50 / LCM-2D — Flat Screen

Mongoose / Meerkat PT

MD-2 / MD-3

Mamut — Composite Frame

ALS-2 — Hook Strip Flat Screen

KTL 48 Series — Steel Frame

28 Series

FSI 5000 Series

Panel Configurations

Configuration	Construction	Panel Size (mm)	API RP 13C	Series	Packaging

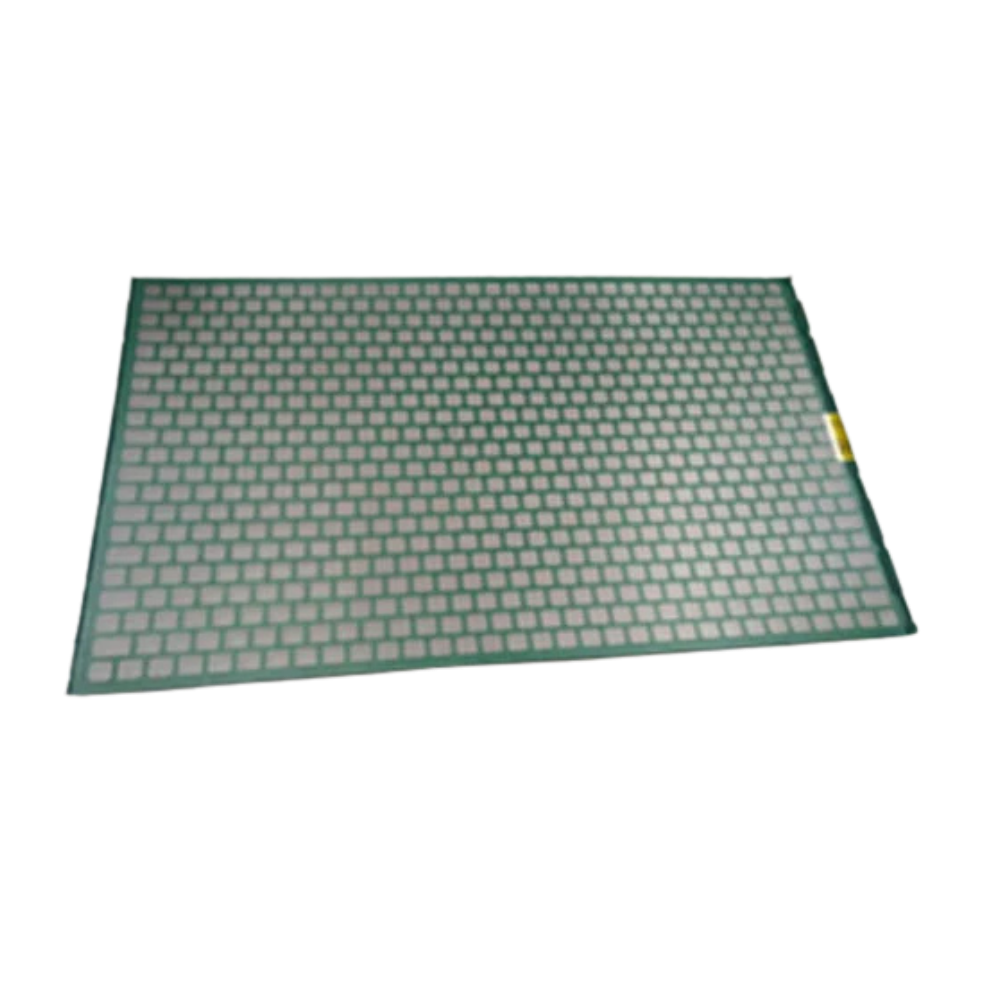

FLC 2000 / 48 x 30 — PWP	PWP (perforated wear plate)	1053 x 697	API 120 – API 400	DX · DF · HP	2 pcs per carton, wooden case
FLC 2000 / 48 x 30 — PMD	PMD (pyramid)	1053 x 697	API 20 – API 325	DX · DF · HP	2 pcs per carton, wooden case

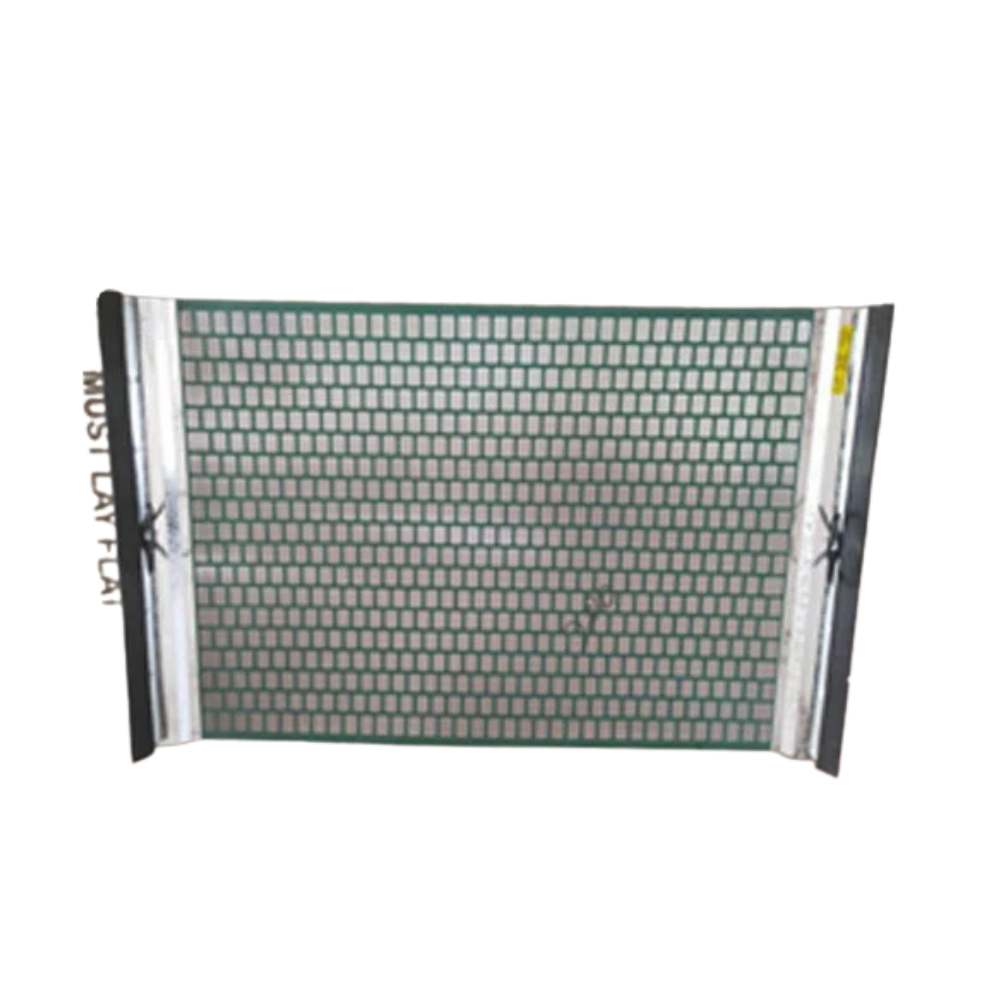

FLC 500 Series — PWP	PWP (perforated wear plate)	1050 x 695	API 20 – API 325	DX · DF · HP	2 pcs per carton, wooden case
FLC 500 Series — PMD	PMD (pyramid)	1050 x 695	API 20 – API 325	DX · DF · HP	2 pcs per carton, wooden case

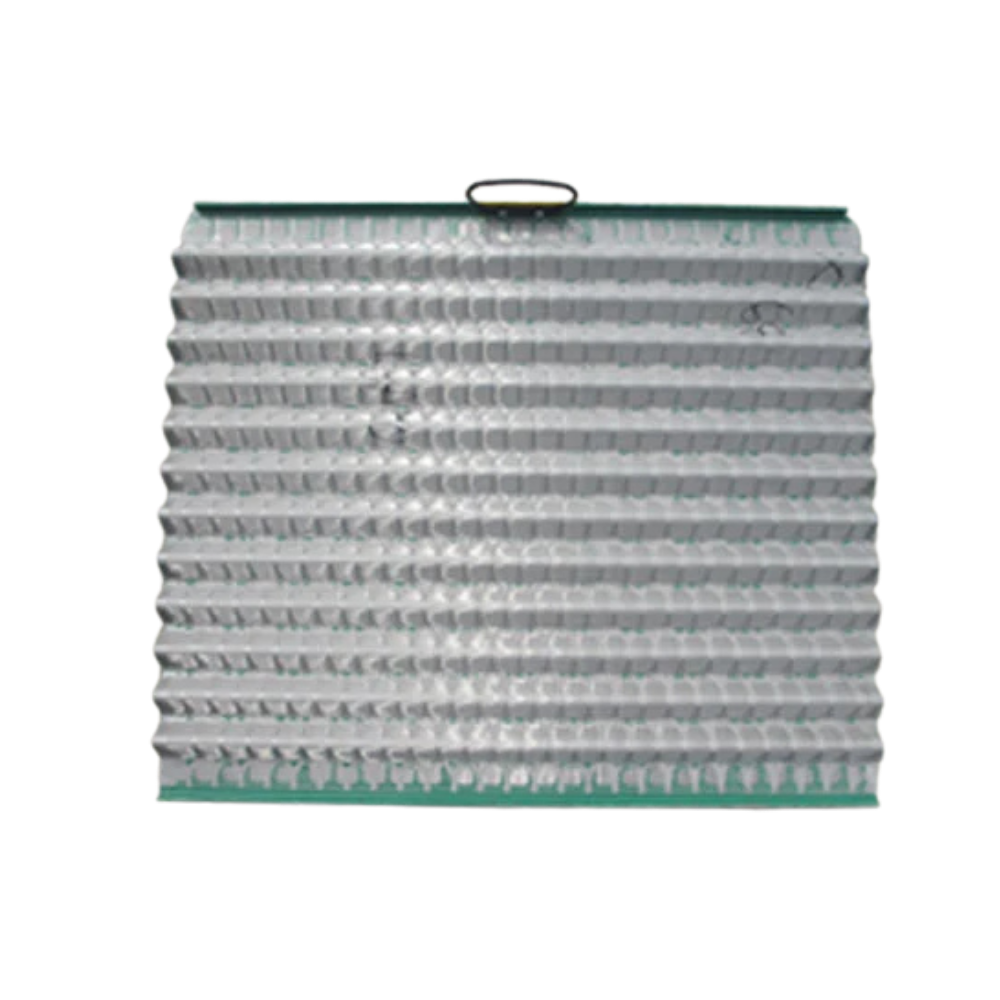

DP 600 Series — PMD	PMD (pyramid)	1070 x 570	API 20 – API 325	DX · DF · HP	2 pcs per carton, 20 pcs per wooden case

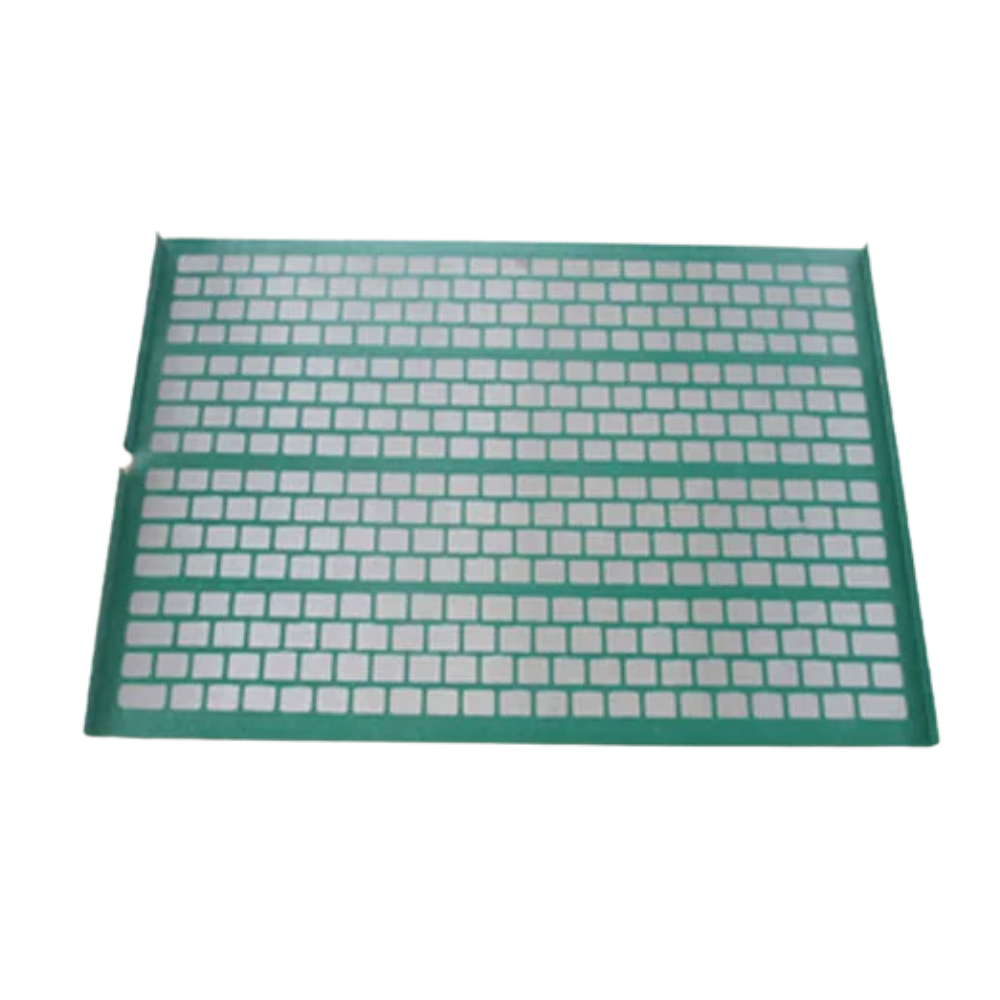

Hyperpool — PWP	PWP (perforated wear plate)	1050 x 695	API 20 – API 325	DX · DF · HP	2 pcs per carton, wooden case

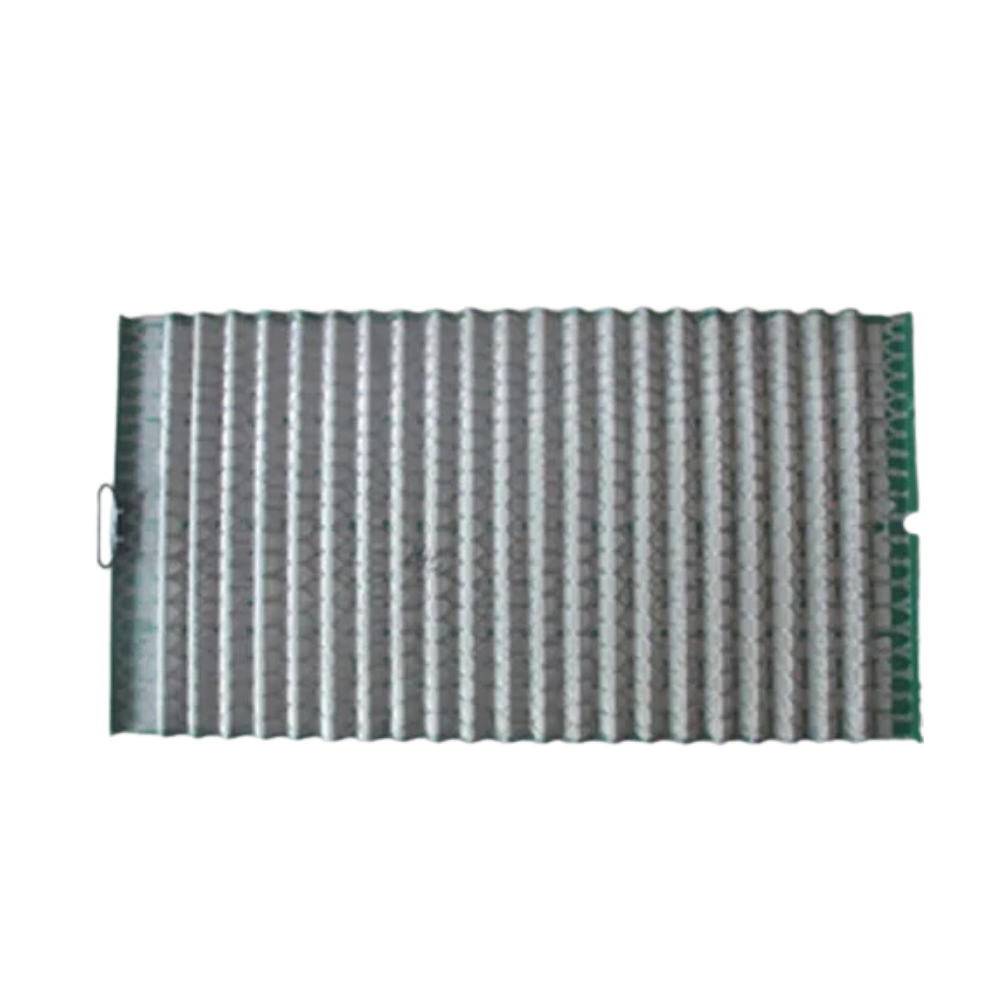

Hyperpool — PMD	PMD (pyramid)	1070 x 570	API 20 – API 325	DX · DF · HP	2 pcs per carton, wooden case
Hyperpool — Hook Strip PWP	PWP, hook strip	1181 x 712	API 20 – API 325	XL · XR	Paper carton, shipped in wooden case

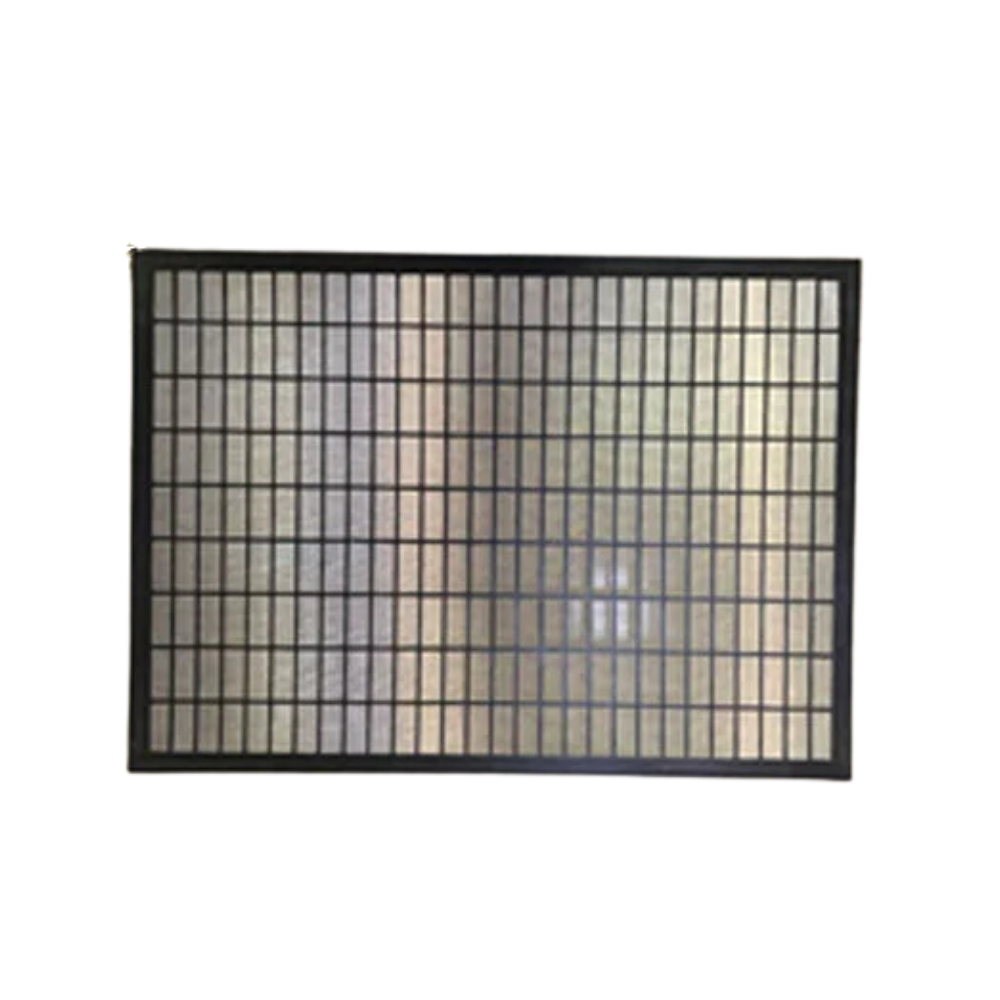

VSM 300 — Scalping (Top Deck)	Pretension, repairable	940 x 676	API 10 – API 325	—	2 pcs per carton, wooden case

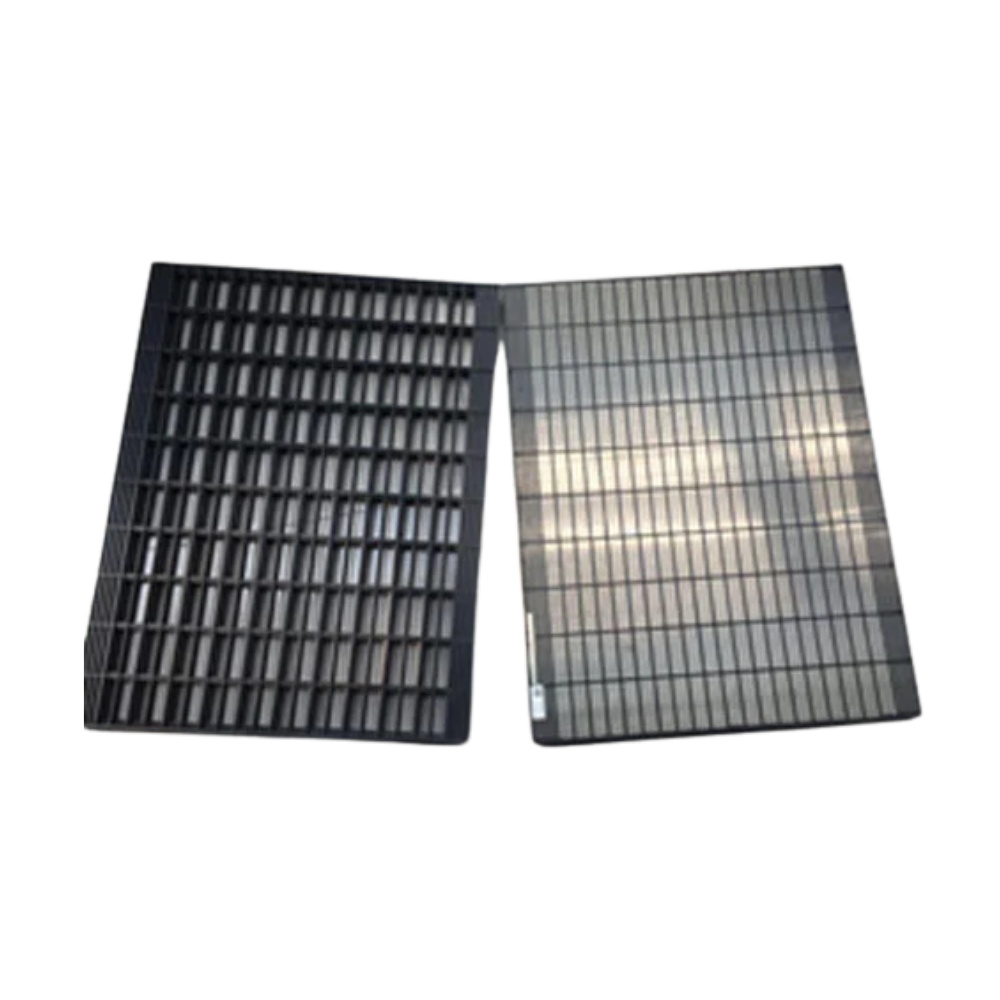

VSM 300 — Primary (Lower Deck)	Pretension, repairable	885 x 686	API 10 – API 325	—	2 pcs per carton, 20 pcs per wooden case

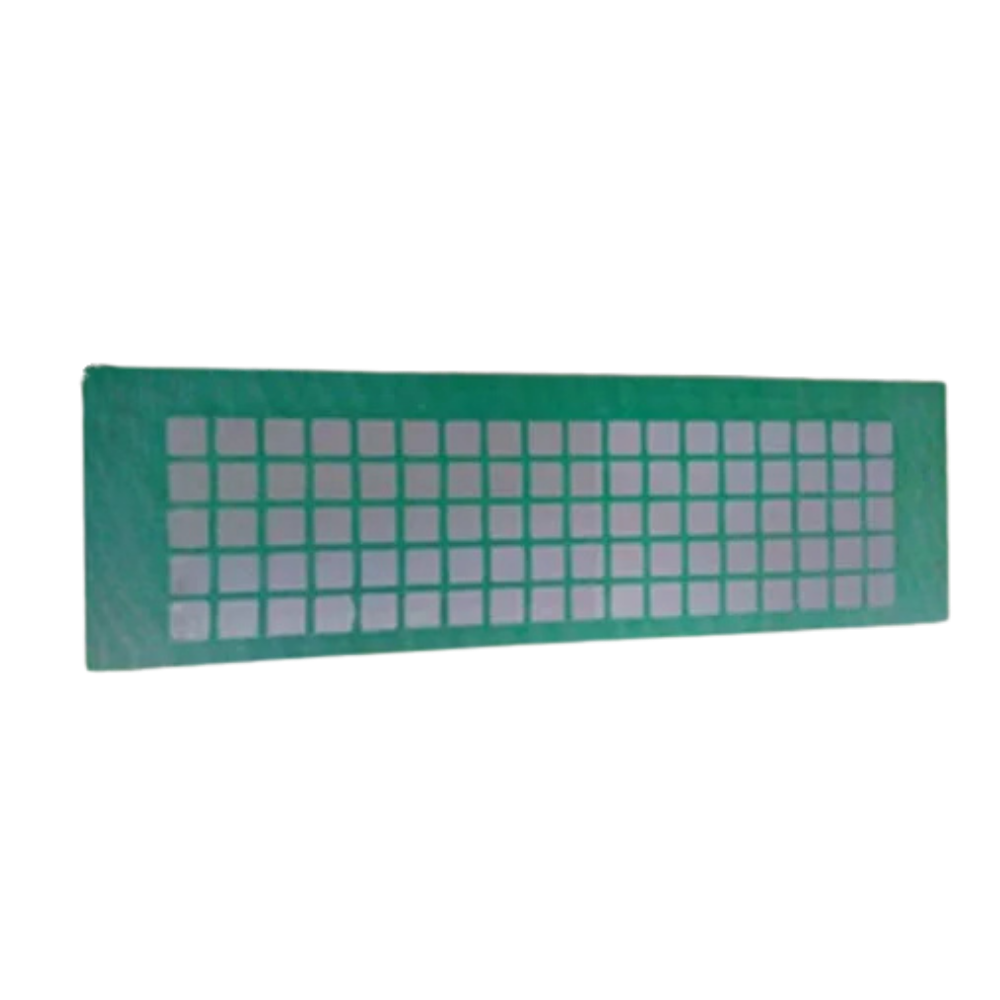

VSM 300 — Secondary (Drying Deck)	Pretension, repairable	686 x 208	API 40 – API 325	—	2 pcs per carton, wooden case

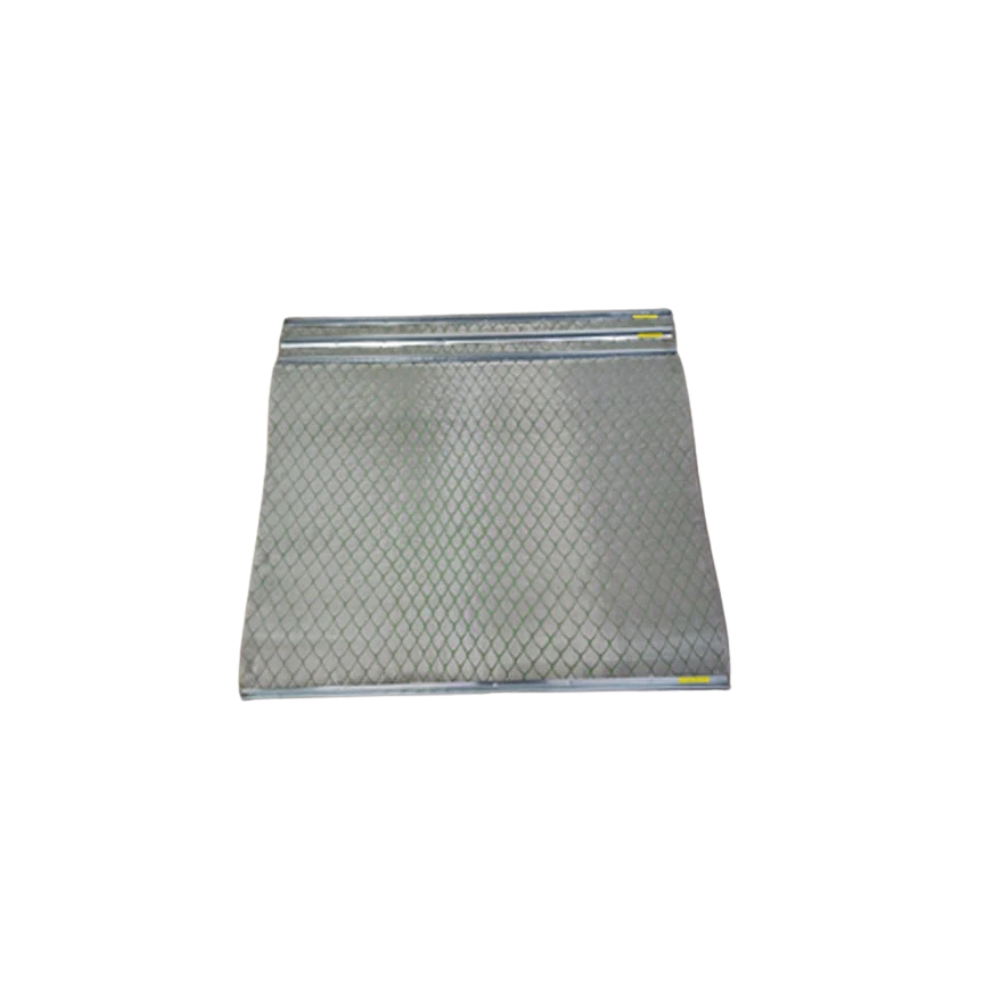

4' x 5' / B40 — Hook Strip Soft Screen	Hook strip, soft screen	1220 x 1524	API 120 – API 325	XL · XR · MG	Paper carton, shipped in wooden case

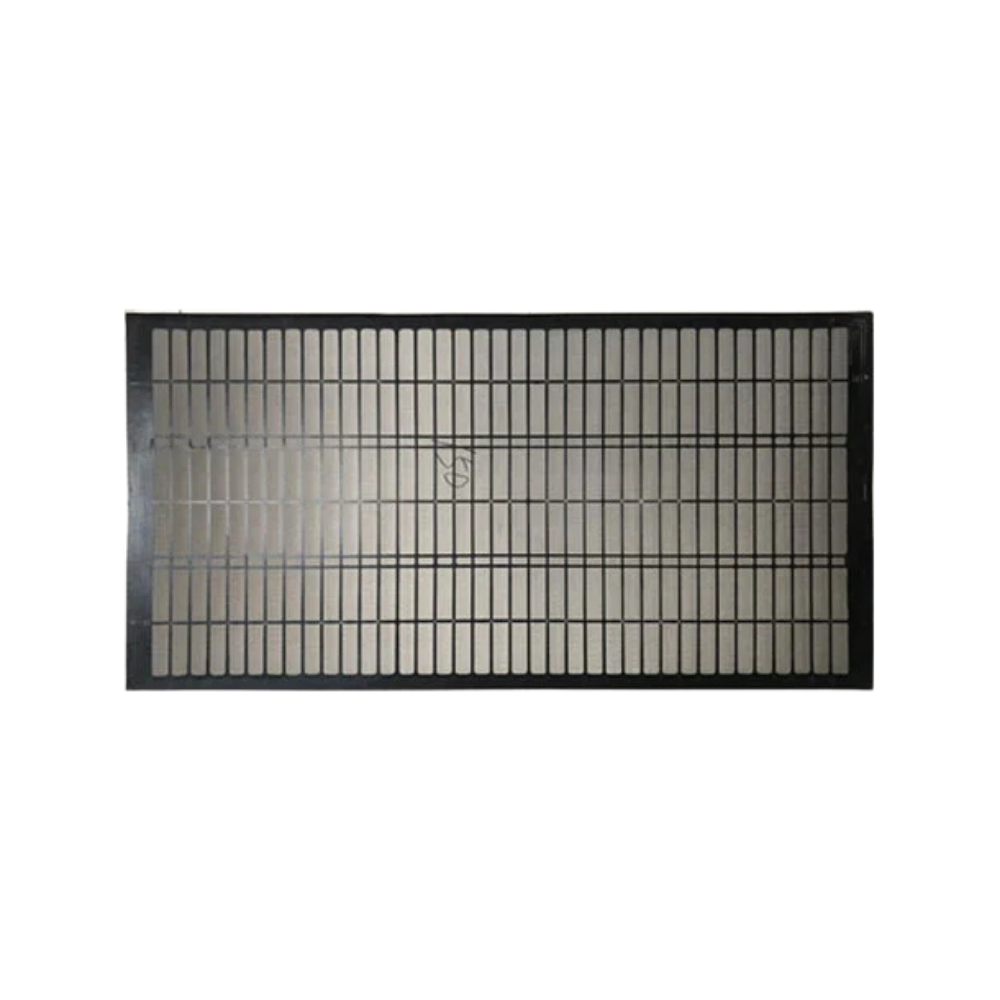

BLT-50 / LCM-2D — Flat Screen	Flat panel	1251 x 635	API 20 – API 325	XL · XR	Paper carton, shipped in wooden case

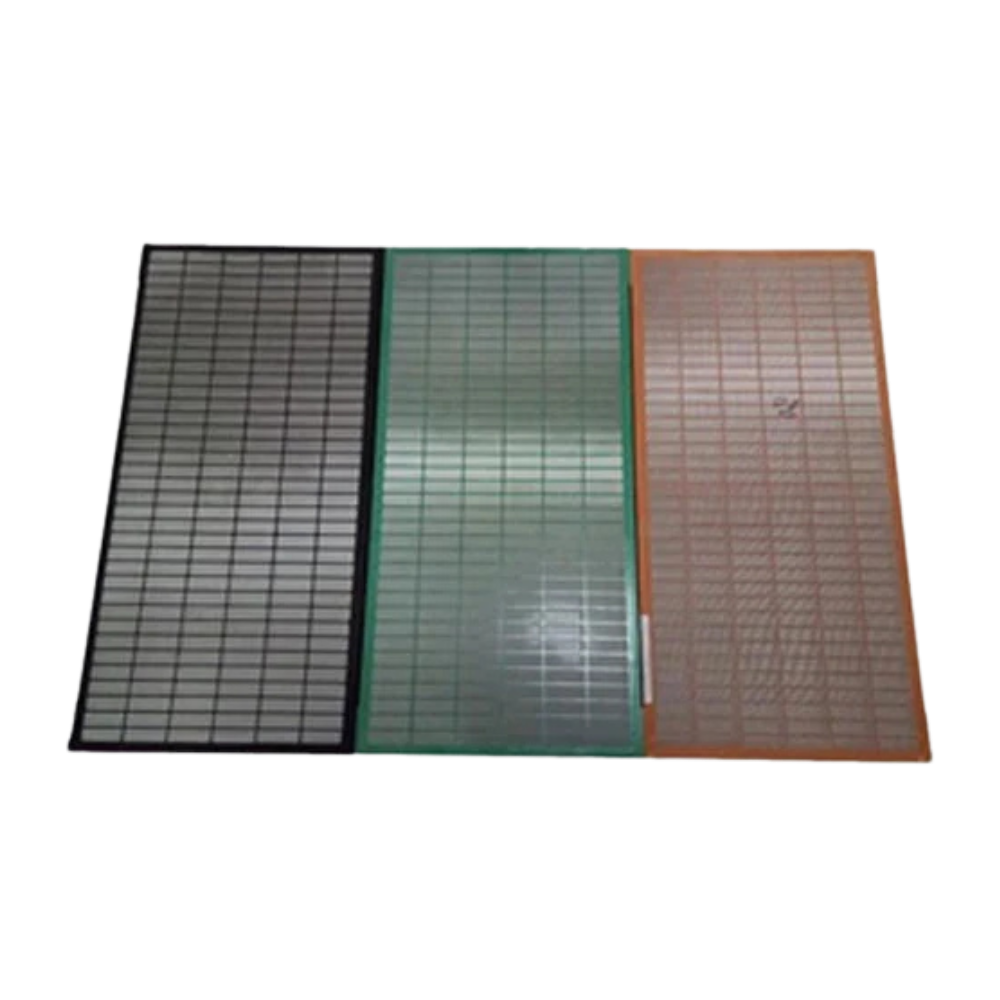

Mongoose / Meerkat PT	Pretension, repairable	1251 x 635	API 20 – API 325	—	Paper carton, shipped in wooden case

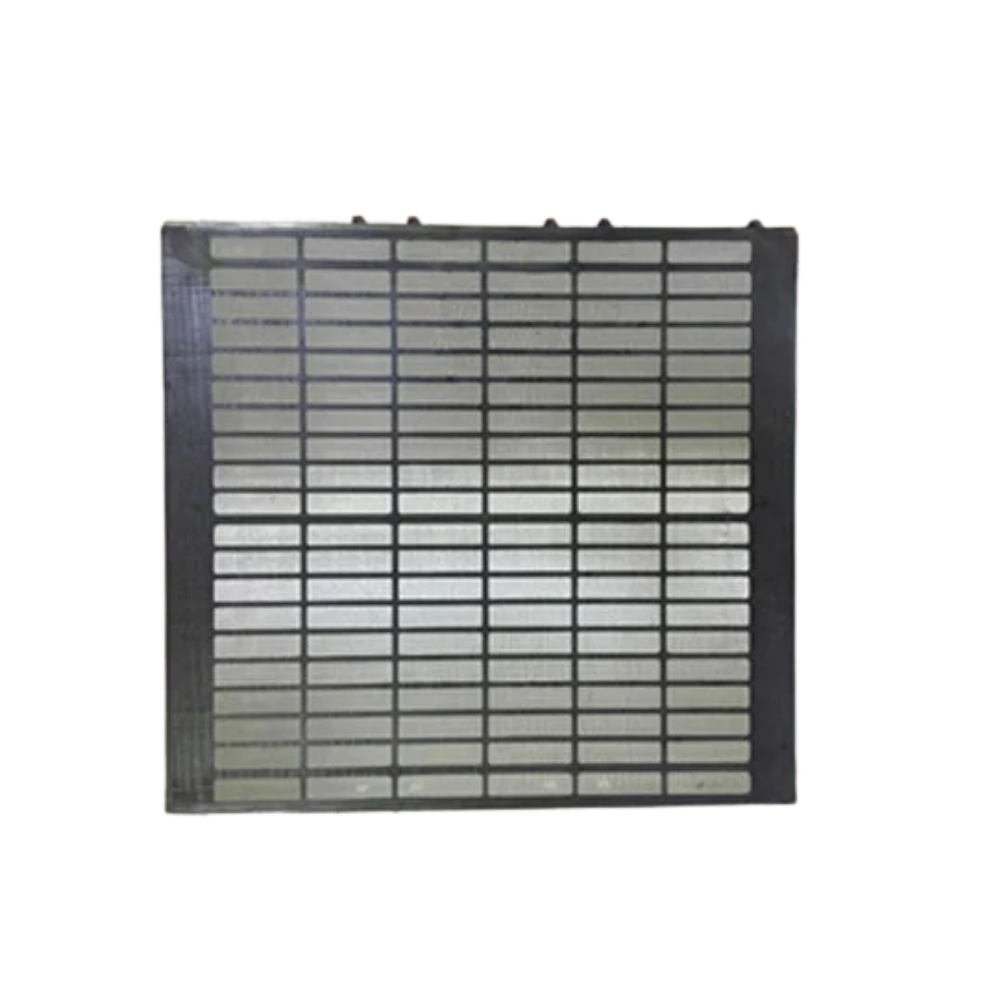

MD-2 / MD-3	Flat panel	622 x 655	API 20 – API 325	—	Paper carton, shipped in wooden case

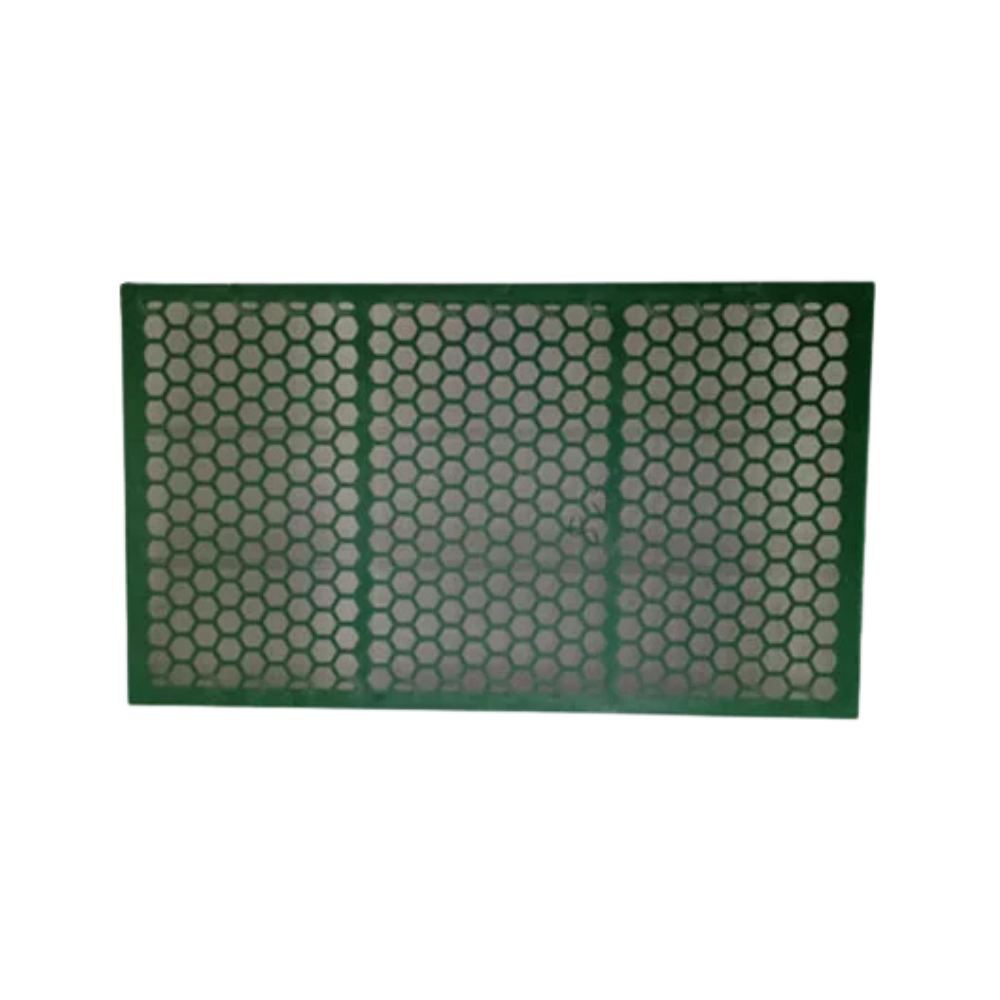

Mamut — Composite Frame	Composite frame	1115 x 763	API 20 – API 325	XL · XR	Paper carton, shipped in wooden case

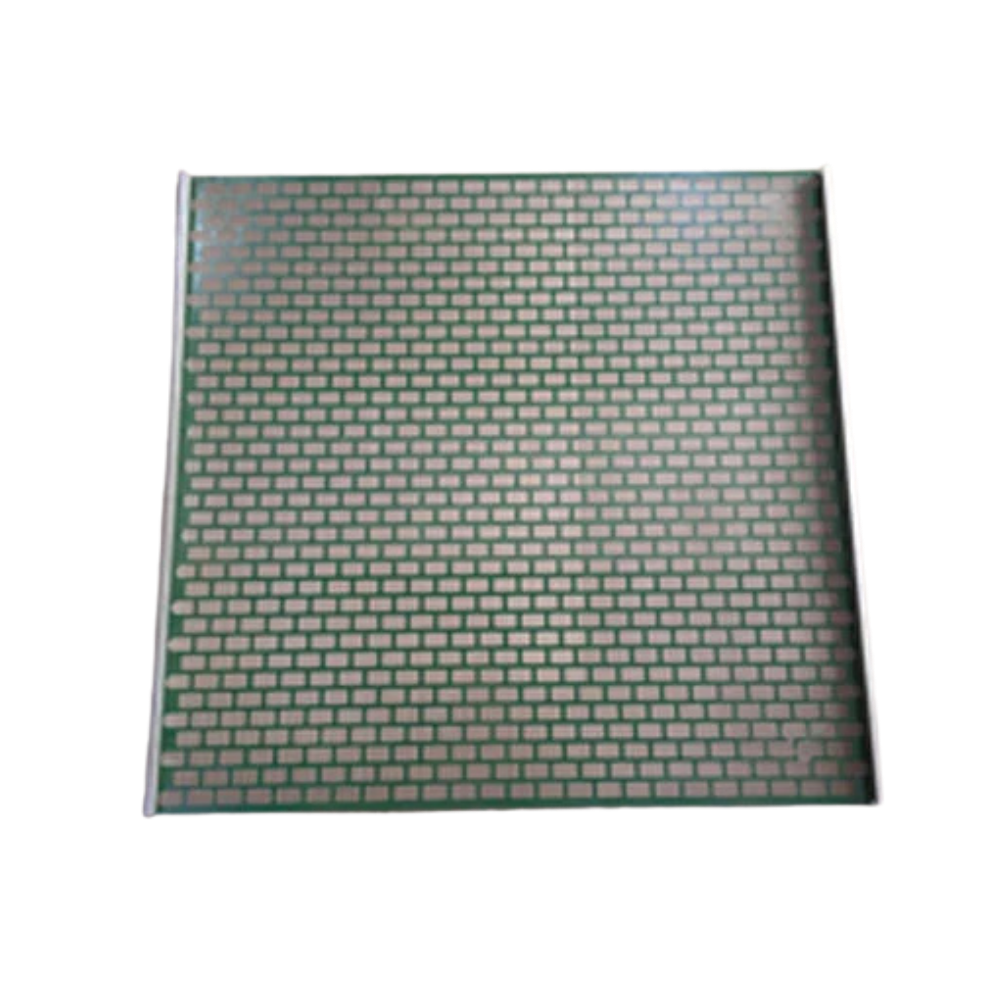

ALS-2 — Hook Strip Flat Screen	Hook strip, flat	622 x 655	API 20 – API 325	—	Paper carton, shipped in wooden case

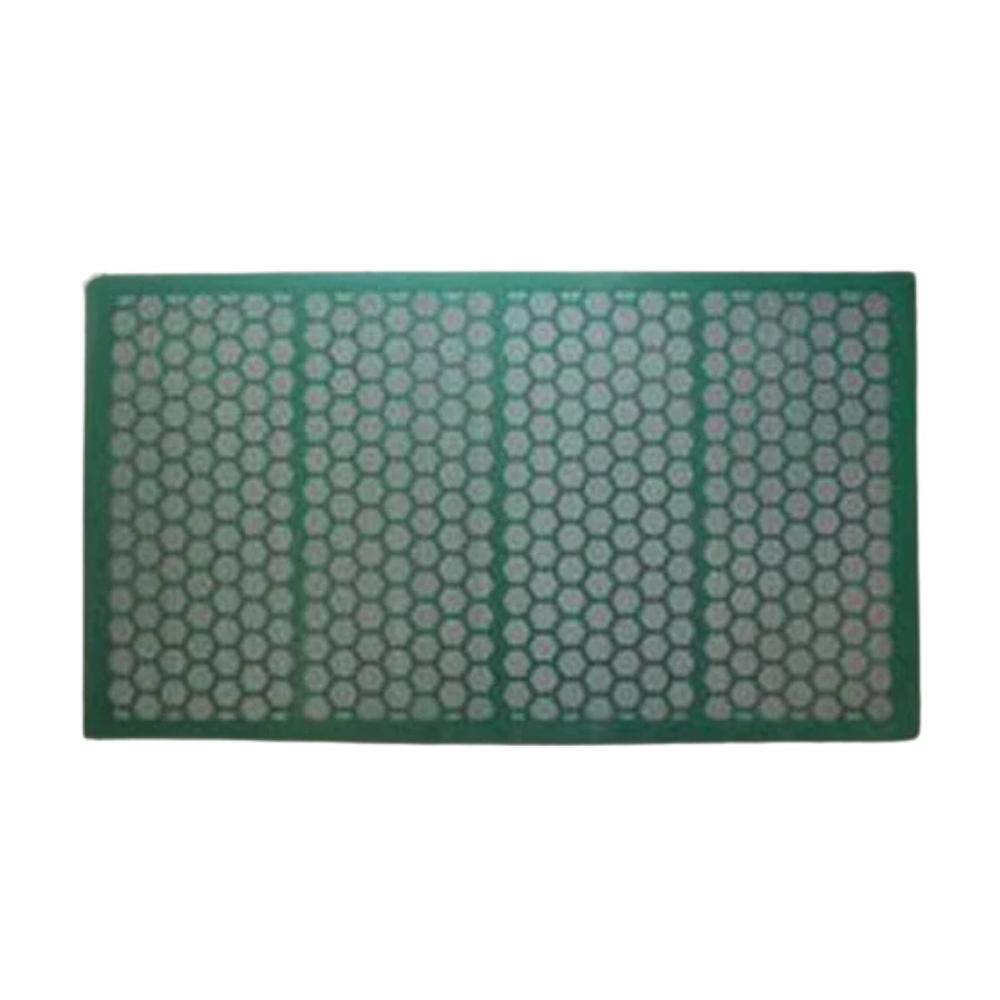

KTL 48 Series — Steel Frame	Steel frame	1220 x 710	API 20 – API 230	XL · XR	Paper carton, shipped in wooden case

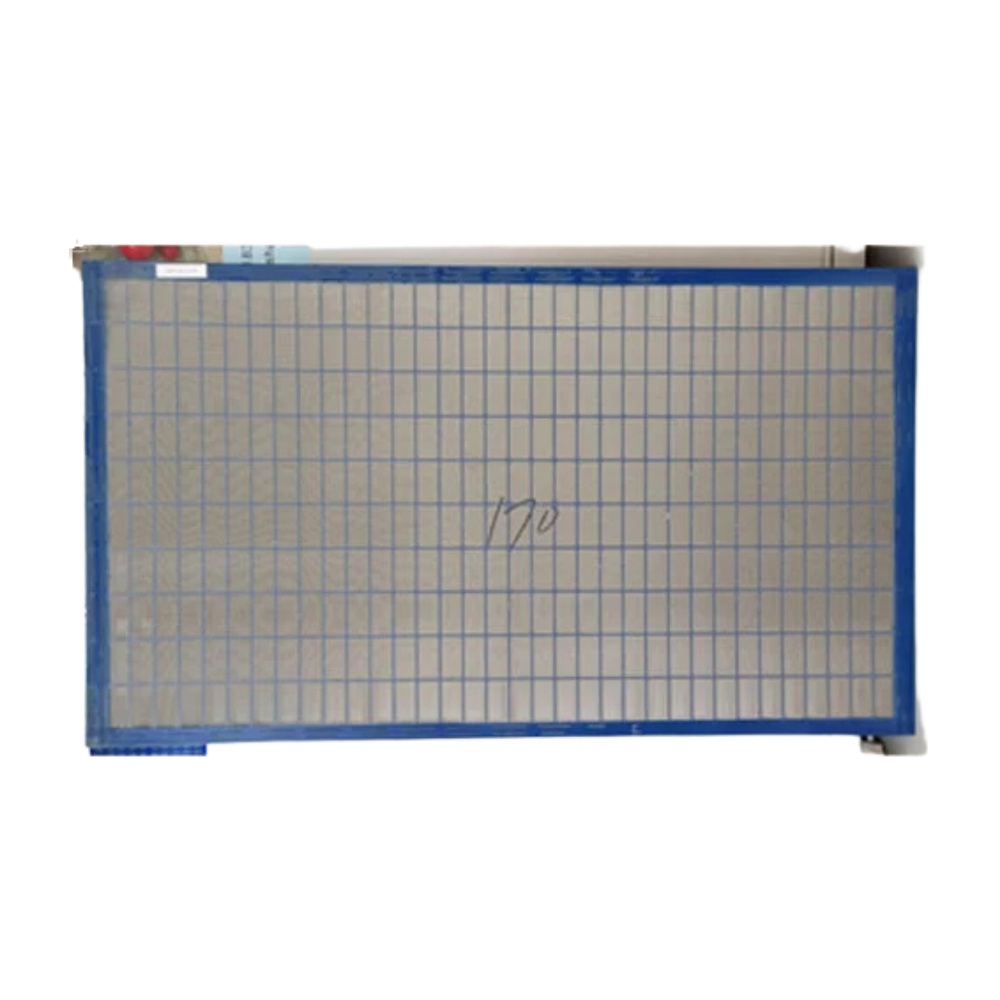

28 Series	Flat panel	1250 x 715	API 16 – API 325	XL · XR	Paper carton, shipped in wooden case

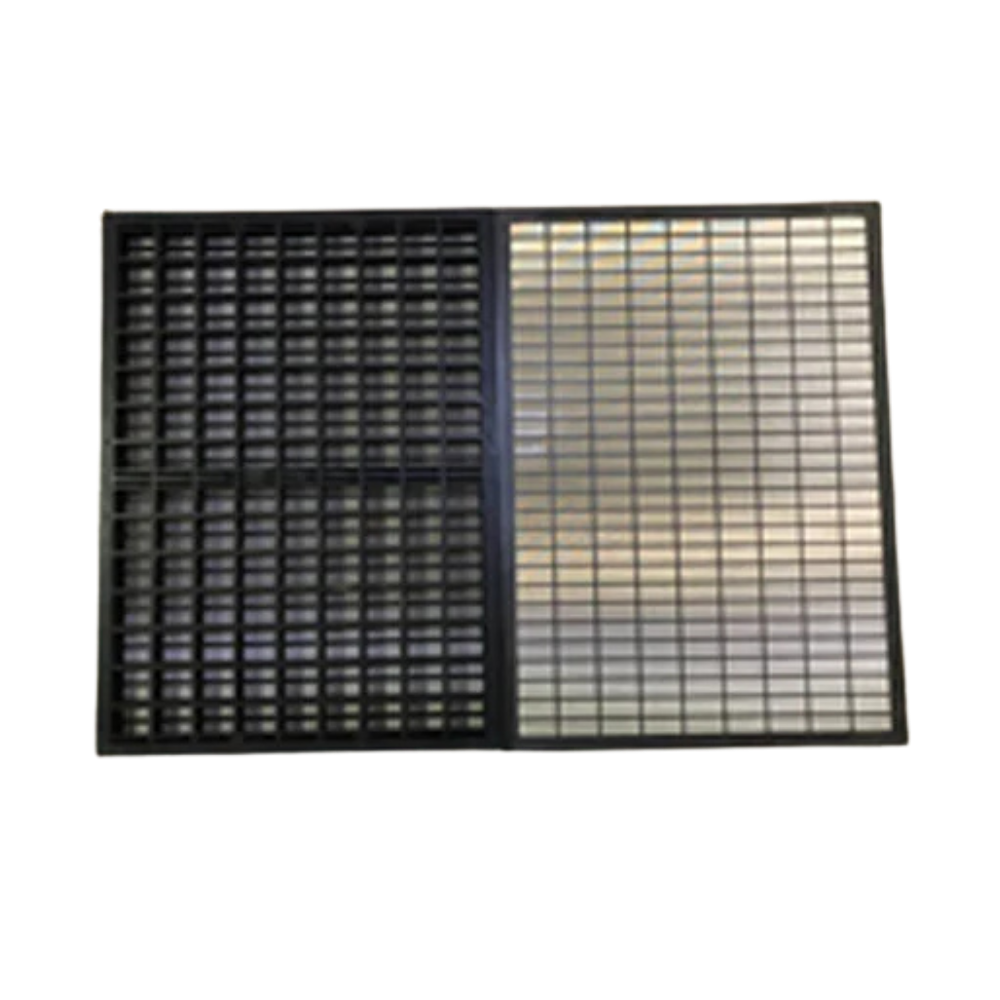

FSI 5000 Series	Flat panel	1067 x 737	API 20 – API 325	XL · XR	Paper carton, shipped in wooden case

No panel matches that combination. Reset the filters, or ask us — non-standard sizes are made to order.

Shaker Compatibility

Screen construction and mesh series available per shaker model.
